气动液压元件 4

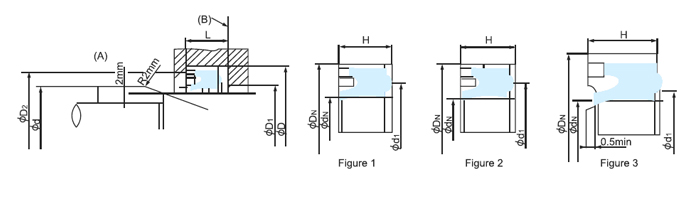

AEI尺寸表
| dn |
Dn |
H |
D1 |
d |
D |
L |
D2 |
D3 |
|
|
|
|
|
H11 |
H10 |
±0.1 |
±0.2 |
±0.3 |
|
6 |
12 |
5.5 |
8.6 |
6 |
12 |
7 |
9 |
7 |
|
8 |
16 |
6 |
11.5 |
8 |
16 |
7 |
13 |
9 |
|
10 |
18 |
6 |
13.5 |
10 |
18 |
7 |
15 |
11 |
|
12 |
20 |
6 |
15.5 |
12 |
20 |
7 |
17 |
13 |
|
14 |
22 |
6 |
17.5 |
14 |
22 |
7 |
19 |
15 |
|
16 |
24 |
6 |
19.5 |
16 |
24 |
7 |
21 |
17 |
|
18 |
26 |
6 |
21.5 |
18 |
26 |
7 |
23 |
19 |
|
20 |
28 |
6 |
23.5 |
20 |
28 |
7 |
24 |
21 |
|
22 |
30 |
6 |
25.5 |
22 |
30 |
7 |
26 |
23 |
|
25 |
33 |
6 |
28.5 |
25 |
33 |
7 |
29 |
26 |
|
28 |
36 |
6 |
31.5 |
28 |
36 |
7 |
32 |
29 |
|
30 |
40 |
6 |
34.5 |
30 |
40 |
7 |
35 |
31.5 |
|
32 |
42 |
6 |
36.5 |
32 |
42 |
7 |
37 |
33.5 |
|
36 |
46 |
6 |
40.5 |
36 |
46 |
7 |
41 |
37.5 |
|
40 |
50 |
6 |
44.5 |
40 |
50 |
7 |
45 |
41.5 |
|
50 |
67 |
10 |
54 |
50 |
67 |
12.5 |
58 |
51.5 |
|
52 |
69 |
10 |
56 |
52 |
69 |
12.5 |
60 |
55 |
|
57 |
74 |
10 |
61 |
57 |
74 |
12.5 |
65 |
60 |
|
70 |
87 |
10 |
74 |
70 |
87 |
12.5 |
78 |
73 |
|
78 |
98 |
10 |
82.5 |
78 |
95 |
12.5 |
86 |
81 |
气动电磁阀用密封件

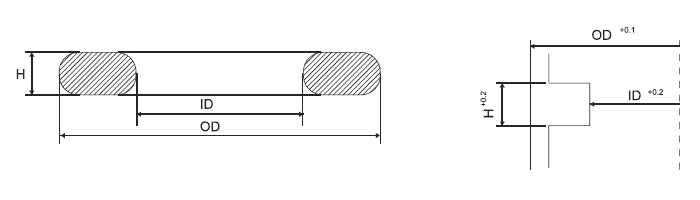

C型圈尺寸表
| 型号 |
D |
d |
H |
|
C-SP-6 |
6.00 |
3.00 |
0.70 |
|
C-SP-7 |
7.00 |
3.50 |
0.90 |
|
4V110 |
7.40 |
3.5 |
1.00 |
|
4V110 |
7.70 |
4.00 |
1.00 |
|
4V110 |
7.73 |
4.00 |
1.00 |
|
4V110 |
7.73 |
4.00 |
1.60 |
|
4V120 |
8.15 |
4.8 |
1.00 |
|
C-SP-10 |
10.00 |
5.00 |
1.30 |
|
4V210 |
10.15 |
5.00 |
1.30 |
|
4V210 |
10.16 |
6.00 |
1.30 |
|
4V210 |
10.18 |
5.00 |
1.30 |
|
4V210 |
10.20 |
5.00 |
1.40 |
|
4V210 |
10.25 |
5.00 |
1.00 |
|
4V210 |
10.38 |
5.00 |
1.00 |
|
4V210 |
10.40 |
5.00 |
1.30 |
|
4V210 |
10.40 |
5.00 |
1.40 |
|
4V210 |
10.40 |
6.00 |
1.30 |
|
4V210 |
10.40 |
6.00 |
1.40 |
|
4V230 |
10.00 |
4.00 |
1.00 |
|
4V230 |
10.00 |
6.00 |
1.00 |
|
4V310 |
11.15 |
6.00 |
1.00 |
|
4V310 |
11.50 |
5.70 |
1.40 |
|
4V310 |
11.70 |
6.00 |
1.40 |
|
4V310 |
11.75 |
5.90 |
1.40 |
|
4V310 |
12.00 |
7.40 |
1.50 |
|
C-SP-12.5 |
12.50 |
6.50 |
1.50 |
|
4V310 |
12.70 |
6.30 |
1.60 |
|
4V310 |
12.80 |
7.40 |
1.40 |
|
4V330 |
11.50 |
5.50 |
1.10 |
|
4V360 |
14.15 |
6.90 |
1.50 |
|
4V360 |
15.00 |
8.20 |
1.40 |
|
4V360 |
14.16 |
8.80 |
1.40 |
|
4V410 |
16.15 |
9.00 |
1.50 |
|
4V410 |
16.16 |
10.00 |
1.50 |
|
C-SP-16 |
16.30 |
8.20 |
1.60 |
|
4V410 |
16.40 |
9.00 |
1.50 |
|
4V510 |
20.16 |
10.00 |
1.60 |
|
4V510 |
22.16 |
10.00 |
1.60 |
|
C-SP-24 |
24.30 |
12.70 |
1.60 |
|
4V610 |
25.16 |
16.00 |
2.00 |
Y型圈尺寸表
| 型号 |
D |
d |
H |
|
4V210 |
10.16 |
6.00 |
2.00 |
|
4V210 |
10.20 |
6.00 |
2.00 |
|
4V210 |
10.30 |
6.00 |
2.00 |
|
4V210 |
11.70 |
7.00 |
2.00 |
|
4V310 |
11.80 |
8.00 |
2.00 |
|
4V310 |
12.20 |
7.50 |
2.00 |
|
4V360 |
14.20 |
9.00 |
2.50 |
|
4V410 |
16.20 |
9.00 |
2.70 |
|
4V410 |
16.40 |
9.50 |
2.00 |
|
4V510 |
20.20 |
10.50 |
2.80 |
|
4V610 |
26.20 |
12.00 |
3.00 |
